Panel - Door Trim - Front - LH (Remove and Replace) - Remove

Panel - Door Trim - Front - LH (Remove and Replace)

Remove

  1. Open the front LH door, and fully lower the window.
  2. Remove the front LH door tweeter. See Tweeter - Front Door - LH (Remove and Replace).

Panel - Door Trim - Front - LH (Remove and Replace)- Remove

  1. Remove the LH front door puddle light. See Puddle Light - Front Door - LH (Remove and Replace).

Panel - Door Trim - Front - LH (Remove and Replace)- Remove

  1. Release the clips that attach the reflector to the rear edge of the LH front door trim panel and the screw cover to the front of the armrest, and then remove the reflector and cover from the trim panel.

Rear
Rear

Middle
Middle

  1. Remove the screws that attach the trim panel to the door.

Front
Front

Trim Panel Clip Locations
Trim Panel Clip Locations

Door Clip Locations
Door Clip Locations

  1. Pull out on the trim panel from the puddle light opening to release the clips that attach the trim panel to the door.

Caution:

Do not remove the trim panel from the door at this time.

  1. Continue to pull and release all of the clips around the edge of the trim panel, working from the bottom up.

Caution:

Do not remove the trim panel from the door at this time.

Panel - Door Trim - Front - LH (Remove and Replace)- Remove

  1. Remove the manual release cable collar from the trim panel, and pivot the collar down to a vertical orientation.

Panel - Door Trim - Front - LH (Remove and Replace)- Remove

  1. Slide the cable barrel end out of the release lever, and remove the cable from the trim panel.

Trim Panel Connectors
Trim Panel Connectors

  1. Disconnect the electrical harness from the connectors, and then release the clips that attach the electrical harness to the trim panel.

Caution:

Do not remove the trim panel from the door at this time.

Door Electrical Harness Connectors
Door Electrical Harness Connectors

Panel - Door Trim - Front - LH (Remove and Replace)- Remove

  1. If present, remove and discard the cable ties that attach the electrical harness to the door trim panel.
  2. Raise the trim panel up to unhook it from the door, and then remove the panel from the door.

Panel - Door Trim - Front - LH (Remove and Replace) - Install

Install

  1. Inspect the condition of the LH front door and the LH front door trim panel. Replace any broken clips and repair any damage.
  2. Bring the trim panel to the door, and rest it on the door edge.

Panel - Door Trim - Front - LH (Remove and Replace)- Install

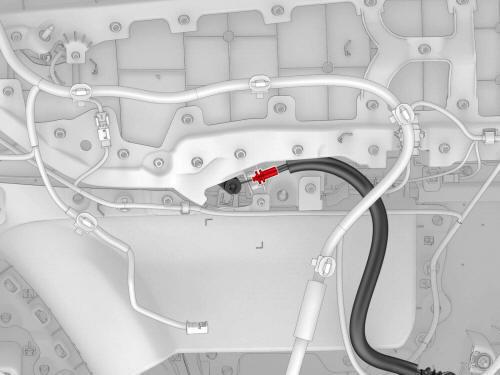

  1. If present, remove and discard the highlighted clip.

Panel - Door Trim - Front - LH (Remove and Replace)- Install

  1. Route the harness as illustrated, making sure to attach the harness to the hooks on the door trim panel.
  2. Fasten the clips that attach the electrical harnesses to the trim panel.
  3. Connect the electrical harness to the LH front door trim panel connectors.

Panel - Door Trim - Front - LH (Remove and Replace)- Install

  1. Position the manual release cable in a vertical orientation, and slide the cable barrel end into the release lever.

Panel - Door Trim - Front - LH (Remove and Replace)- Install

  1. Pivot the manual release cable collar to a horizontal orientation, and press the collar into the trim panel.

Note: Make sure the manual release cable is routed underneath the door harness.

Panel - Door Trim - Front - LH (Remove and Replace)- Install

  1. Lift the trim panel, compress the LH front door inner belt seal slightly, and then hook the three trim panel tabs into the top edge of the door.
  2. Move the electrical harness connector for the puddle lamp out the hole in the bottom of the trim panel.
  3. Install the LH front door puddle lamp. See Puddle Light - Front Door - LH (Remove and Replace).
  4. Make sure that the puddle lamp and map pocket ambient light illuminate when connected.
  5. Fasten the clips that attach the trim panel to the door.
  6. Make sure that the trim panel fits tightly, and that there are no gaps from misaligned or bent clips.

Rear
Rear

Panel - Door Trim - Front - LH (Remove and Replace)- Install

Middle
Middle

  1. Install the screws that attach the trim panel to the door. Torque 6 Nm

Caution:

Make sure that all fasteners are properly torqued and not cross-threaded.

Front
Front

  1. Install the reflector to the rear edge of the trim panel and the screw cover to the front of the armrest.
  2. Install the front LH door tweeter. See Tweeter - Front Door - LH (Remove and Replace).
  3. Close the door and verify the operation of the manual door release lever, that the door latch releases smoothly and easily.
  4. Raise the window and close the door.
