Tesla Model 3: Front Upper Control Arm (FUCA) Mount - LH (Remove and Replace)

Tesla Model 3 2017-2025 Service Manual / Suspension / Front Suspension (Including Hubs) / Front Upper Control Arm (FUCA) Mount - LH (Remove and Replace)

Front Upper Control Arm (FUCA) Mount - LH - Remove

Front Upper Control Arm (FUCA) Mount - LH (Remove and Replace)

SPECIAL TOOLS

Tool, FUCA Ride Height, Model 3 (1450399-00-A)

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Remove the LH front wheel. See Wheel (Remove and Install).
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  4. Remove the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
  5. Remove the hood latch cover. See Cover - Hood Latch (Remove and Replace).
  6. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  7. Remove the LH and RH wiper arms. See Wiper Arms (Remove and Replace).
  8. Remove the cowl screen panel. See Panel - Cowl Screen (Remove and Replace).
  9. Remove the front LH wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Disconnect the wheel speed sensor connector, and then release the harness from the clips on the body and upper control arm.

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Dual Motor only: Remove the nut that attaches the LH front jounce hose bracket to the vehicle.
  2. Raise the vehicle partially.

Front Upper Control Arm (FUCA) Mount - LH - Remove

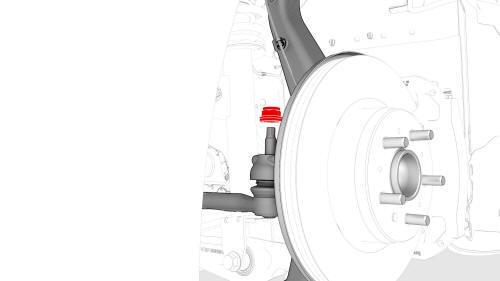

  1. Remove and discard the nut that attaches the LH tie rod end to the knuckle, and then remove the tie rod end from the knuckle.

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Remove the bolt and nut that attach the upper control arm to the knuckle, and then discard the nut.

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Remove and discard the nut that attaches the stabilizer bar link to the LH front spring and damper assembly, and then move the link aside.

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Remove the bolt and nut that attach the LH front spring and damper assembly to the lower control arm.
  2. Remove the stand and lower the vehicle to a working height.

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Release the clips that attach the LH shock tower cover to the body, and then remove the LH shock tower cover from the vehicle.

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Remove the smaller bolts that attach the spring and damper assembly to the shock tower.

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Remove the larger bolts that attach the spring and damper assembly to the shock tower.
  2. Carefully remove the LH front spring and damper assembly from the vehicle.

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Remove the bolts that attach the LH front upper control arm to the front upper control arm mount, and then remove the control arm from the mount.

Front Upper Control Arm (FUCA) Mount - LH - Remove

  1. Remove the nuts that attach the front upper control arm mount to the LH front spring and damper assembly.
  2. Remove the front upper control arm mount from the LH front spring and damper assembly.

Front Upper Control Arm (FUCA) Mount - LH - Install

Install

  1. Install the front upper control arm mount onto the LH front spring and damper assembly, and then install the nuts that attach the mount to the damper assembly. Torque 23 Nm

Front Upper Control Arm (FUCA) Mount - LH - Install

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Install the LH front upper control arm into the front upper control arm mount, and then install and hand-tighten the bolts (x2) that attach the control arm to the mount.

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Install the FUCA ride height tool onto the front upper control arm mount at the rear outer mounting hole.

Front Upper Control Arm (FUCA) Mount - LH - Install

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. With an assistant, hold the front upper control arm against the plate of the FUCA ride height tool and tighten the bolts (x2) that attach the LH front upper control arm to the front upper control arm mount. Torque 50 Nm

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Remove the FUCA ride height tool from the front upper control arm mount.
  2. Install the LH front spring and damper assembly into position in the vehicle.
  3. Install the larger bolts that attach the spring and damper assembly to the shock tower. Torque 62 Nm

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Install the smaller bolts that attach the spring and damper assembly to the shock tower. Torque 35 Nm

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Install the clips that attach the LH shock tower cover to the body.

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Hand-tighten the bolt and nut that attach the LH front spring and damper assembly to the lower control arm.

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Install new nut that attaches the stabilizer bar link to the LH front spring and damper assembly. Torque 98 Nm

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Install new nut that attaches the LH tie rod end to the knuckle. Torque 180 Nm

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Install the bolt and new nut that attach the upper control arm to the knuckle. Torque 56 Nm

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Dual Motor only: Install the nut that attaches the LH front jounce hose bracket to the vehicle. Torque 6 Nm

Front Upper Control Arm (FUCA) Mount - LH - Install

  1. Connect the wheel speed sensor connector, and then connect the harness with the clips on the body and upper control arm.
  2. Install the front LH wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace).
  3. Install the LH front wheel. See Wheel (Remove and Install).
  4. Install the cowl screen panel. See Panel - Cowl Screen (Remove and Replace).
  5. Install the LH and RH wiper arms. See Wiper Arms (Remove and Replace).
  6. Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace).
  7. Install the hood latch cover. See Cover - Hood Latch (Remove and Replace).
  8. Install the cabin intake duct. See Duct - Cabin Intake (Remove and Replace).
  9. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  10. Perform a four wheel alignment. See Four Wheel Alignment (Check and Adjust).
