Coat Hook - Rear - LH (Remove and Replace)

Remove

  1. Remove the headliner. See Headliner (Remove and Install).

Coat Hook - Rear - LH (Remove and Replace)

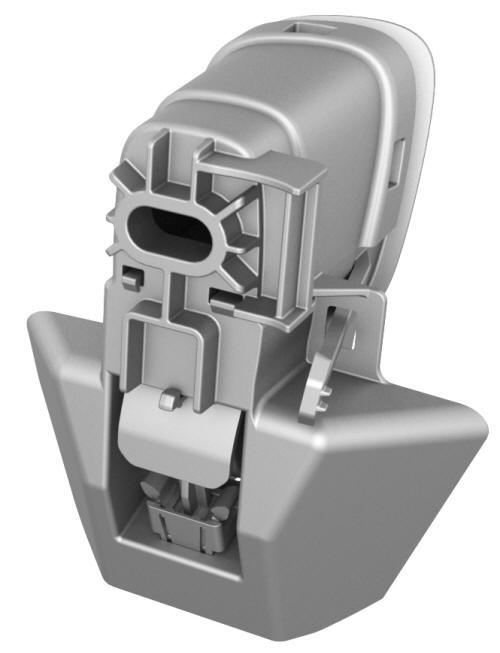

  1. Release the clips that attach the bezel to the LH rear coat hook, and then remove the coat hook from the headliner.

Install

Installation procedure is the reverse of removal.
