HV Battery (RWD) (Remove and Install) - Remove
SPECIAL TOOLS

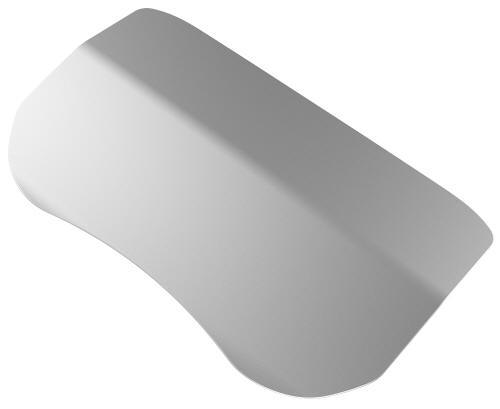

Adapter, Lift Pad, Model 3 (1453419-00-A)
Key, Seat Belt Release, Model 3 (1133787-00-A)
ASY, Battery Table, Manual Lift (1020566-00-F)
Top
SEE MORE:
SPECIAL TOOLS
Pliers, Clip Removal (1133569-00-A)
Remove
Remove the LH front wheel. See
Wheel (Remove and Install).
Remove the bolt and release the clips (x18) that attach the LH front
wheel arch liner to the vehicle, and then remove the liner from the vehicle.
Torque 5 Nm
Warning:
Only technicians who have been trained in High Voltage Awareness are
permitted to perform this procedure. Proper personal protective equipment (PPE)
and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn
at all times a high voltage cable, busbar, or fitting is ha
